MAIN TECHNICAL PARAMETER
| Model |
TTF-820A |
TTF-700A |
TTF-520A |
| Forming Area (Max.) |
820mm x 650 mm |
700mm x 550 mm |
520mm x 400 mm |
| Forming Depth (Max.) |
140mm |
120mm |
110mm |
| Sheet thickness |
0.2-1.6mm |
0.2-1.6mm |
0.2-1.6mm |
| Forming Speed (Max.) |
30times/min |
30times/min |
30times/min |
| Air pressure |
0.6-0.8mpa |
0.6-0.8mpa |
0.6-0.8mpa |
| Air consumption |
4.5 m³/min |
3.6 m³/min |
3.0 m³/min |
| Water consumption |
0.7 m³/h |
0.7 m³/h |
0.7 m³/h |
| Sheet width (Max.) |
850mm |
730mm |
550mm |
| Suitable Sheet |
PP, PS, HIPS, PET, PVC, PLA etc. |
PP, PS, HIPS, PET, PVC, PLA etc. |
PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply |
AC 380V, 50Hz, Three-phase, Four-wire |
AC 380V, 50Hz, Three-phase, Four-wire |
AC 380V, 50Hz, Three-phase, Four-wire |
| Used power |
100Kw |
95Kw |
50Kw |
| Heating power |
140Kw |
118Kw |
75Kw |
| Rated power |
199Kw |
188Kw |
110Kw |
| Procedure |
Feeding-Heating- Forming-Cutting-Stacking-Recycle |
Feeding-Heating- Forming-Cutting-Stacking-Recycle |
Feeding-Heating- Forming-Cutting-Stacking-Recycle |

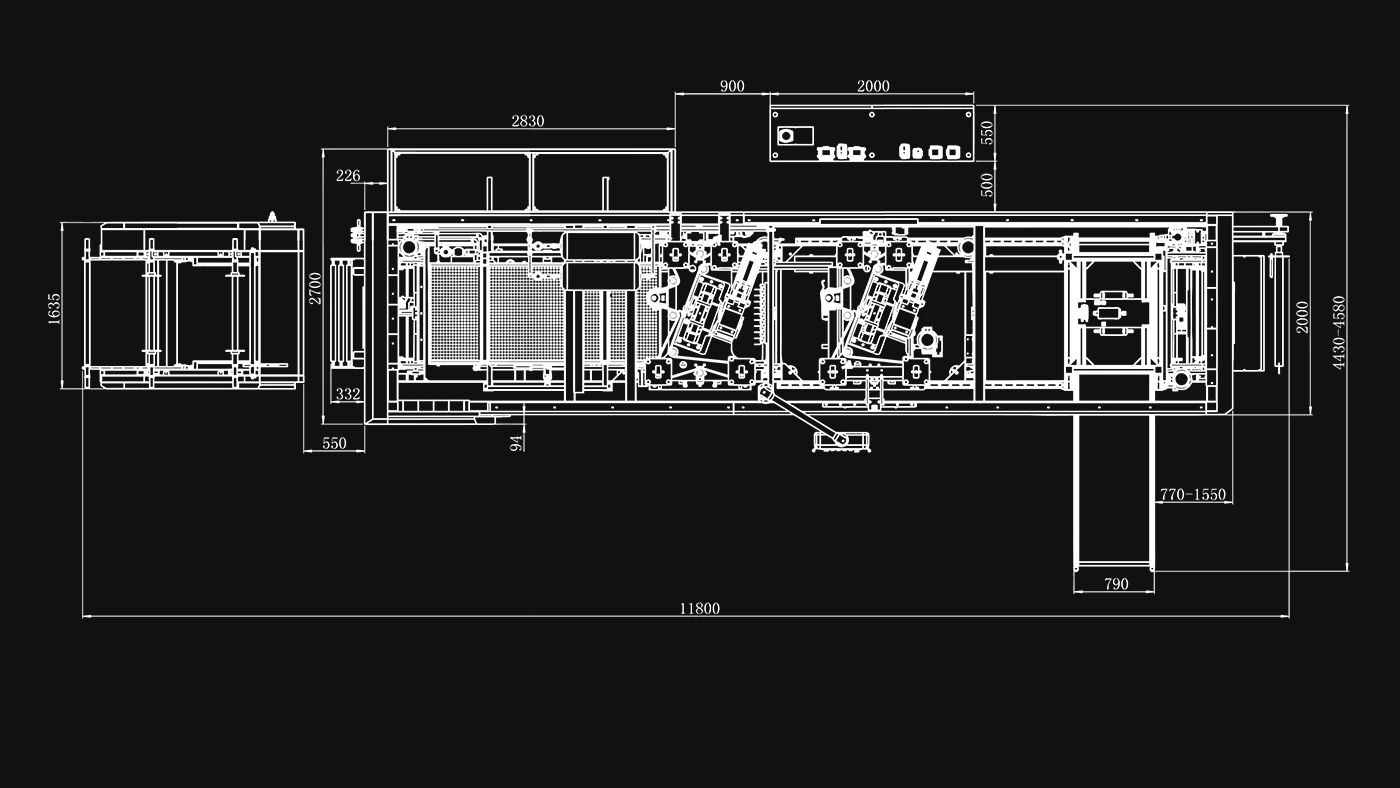

| Dimension |
L11800*W4500*H2800mm |
L11500*W4500*H2800mm |
L8200*W4650*H2670mm |
| Weight |
About 17T |
About 19T |
About 9T |

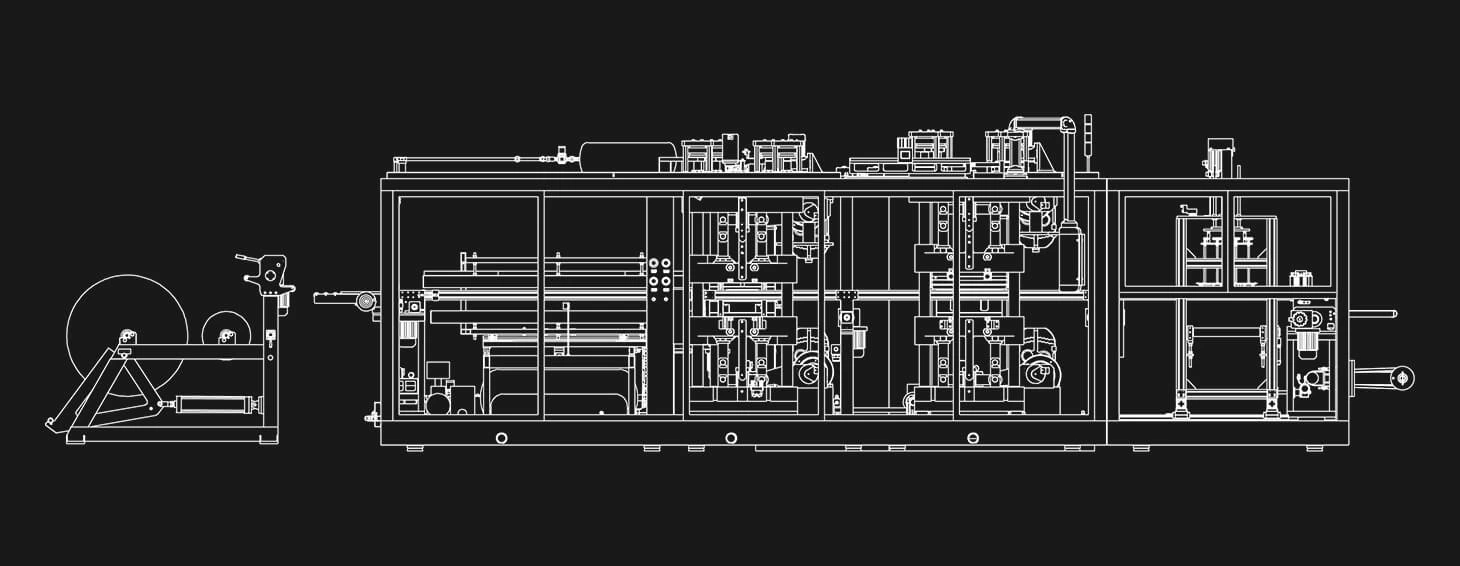

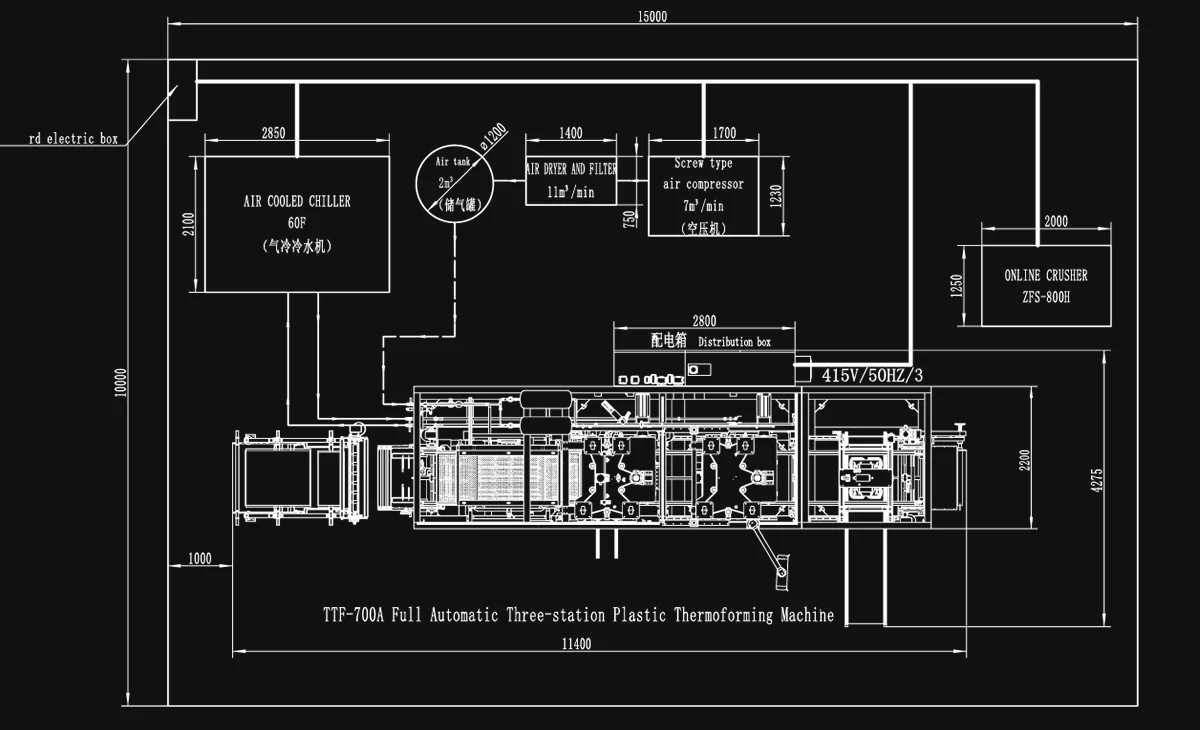

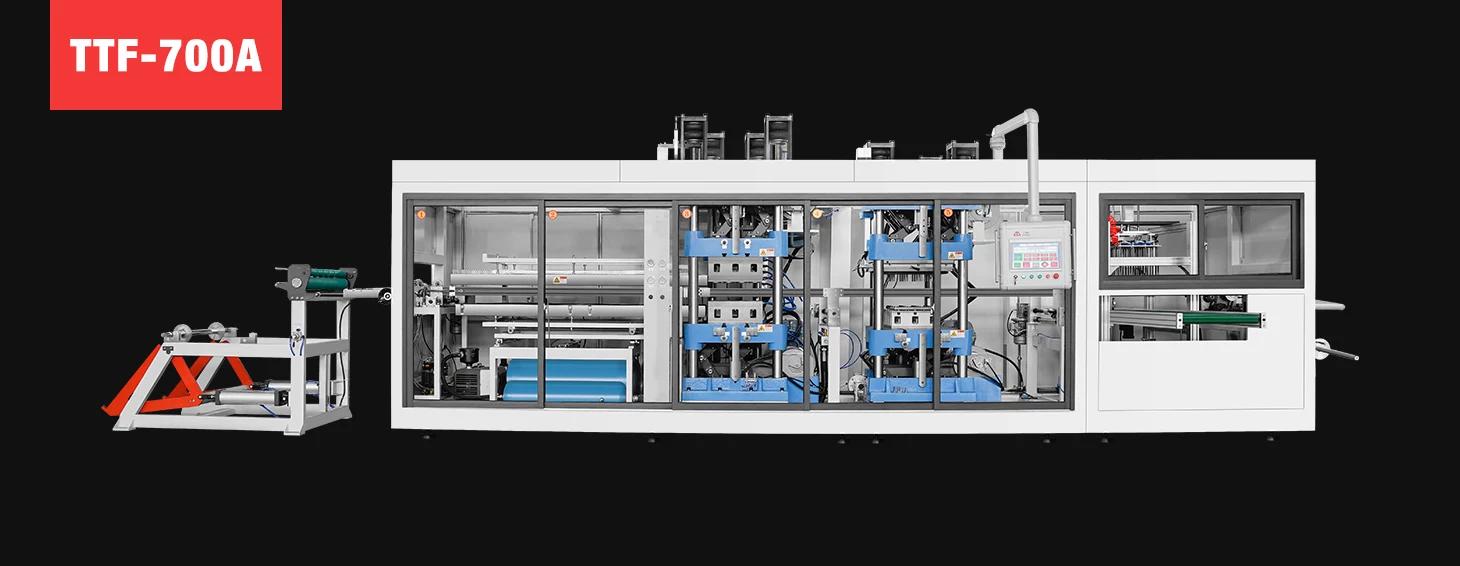

| TTF-700A |

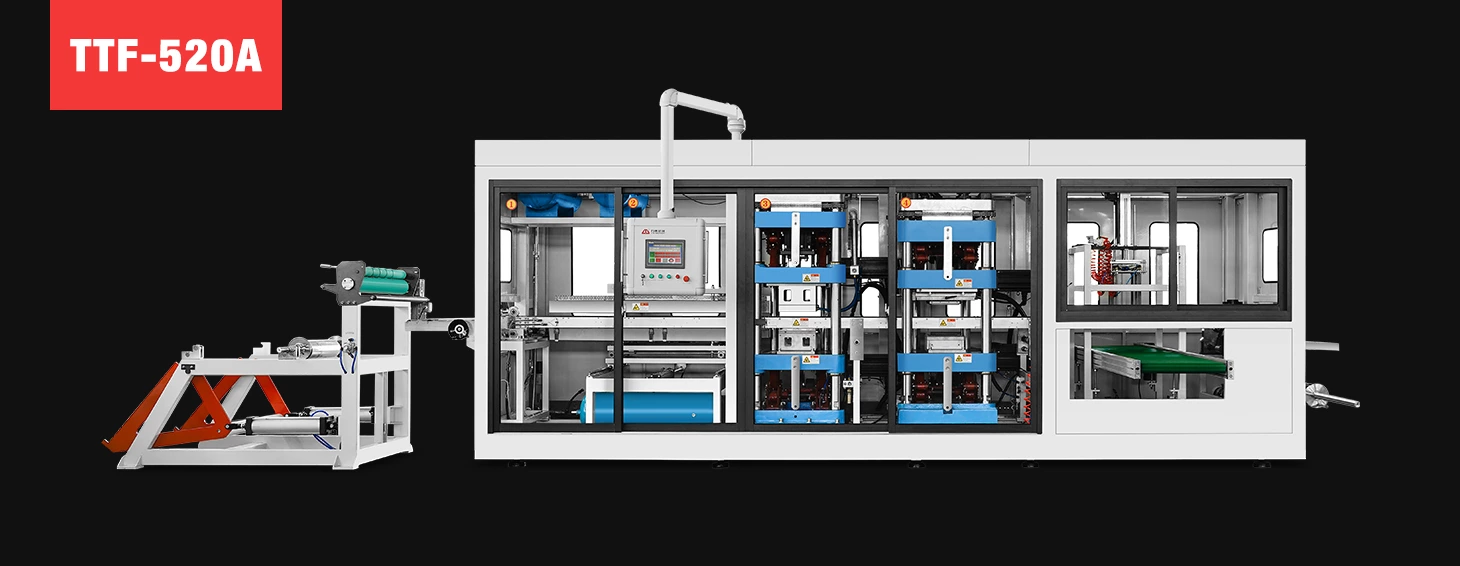

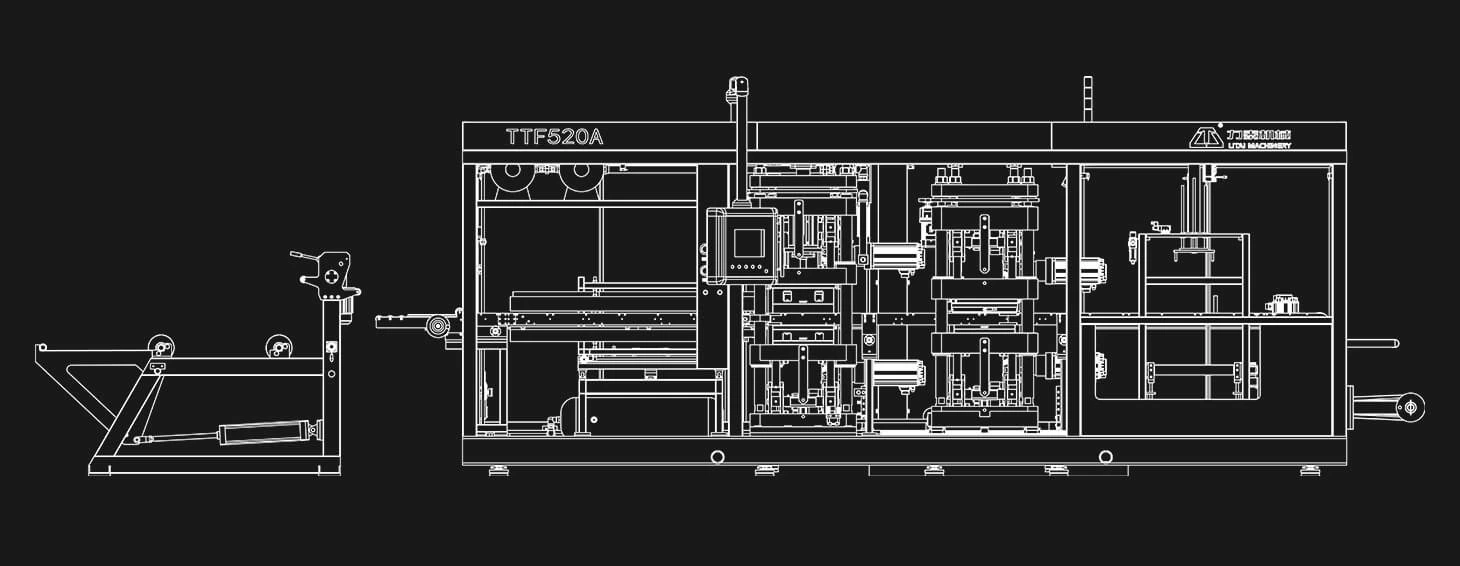

TTF-520A |

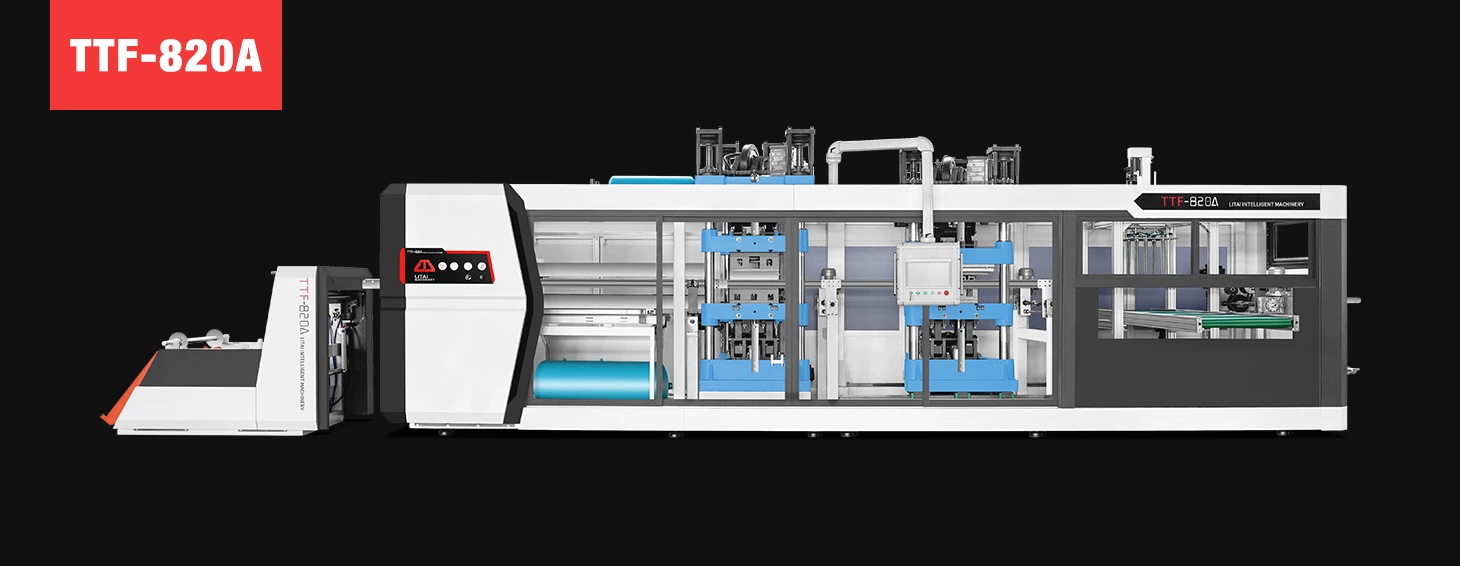

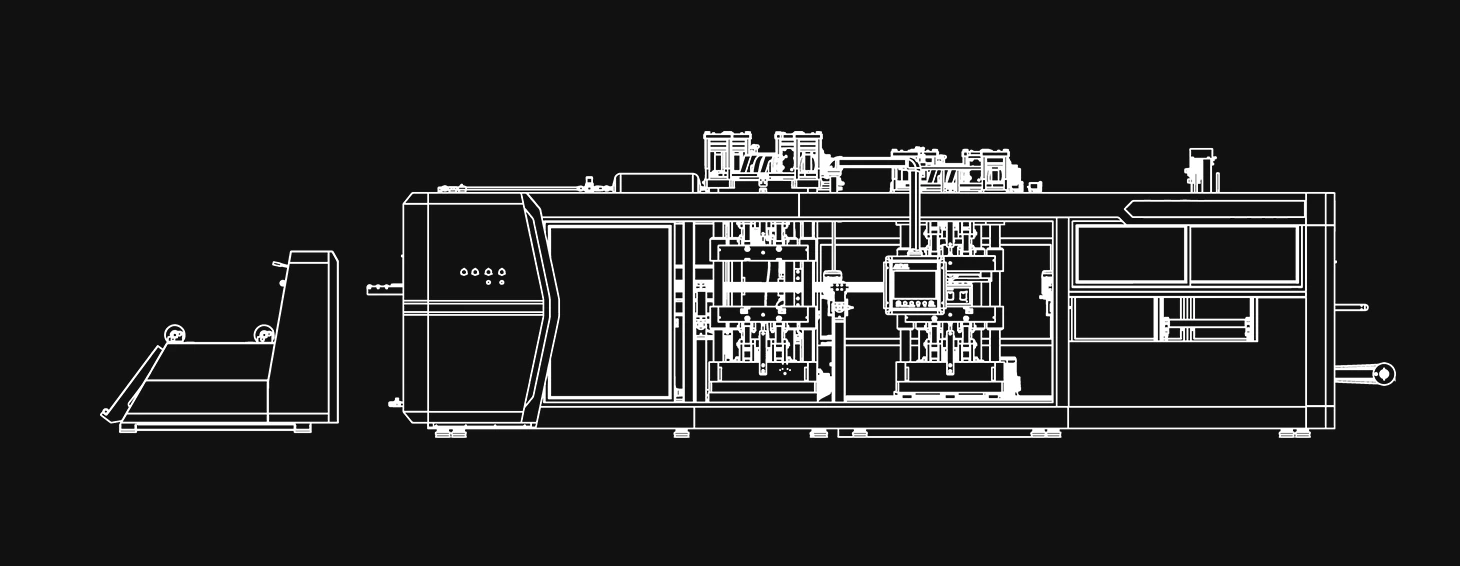

TTF-820A |
 |
 |
 |
SUMMARY OF MACHINE

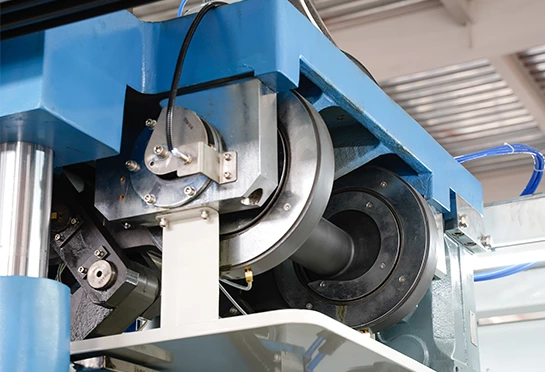

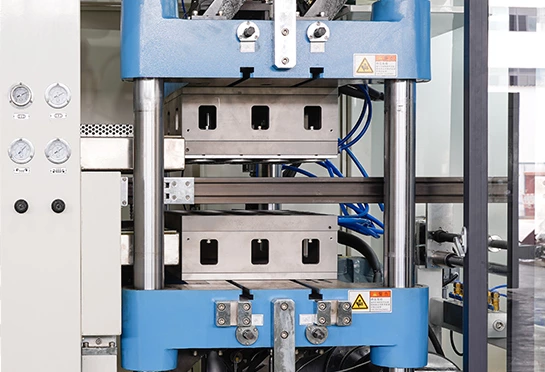

- Every station is driven by the eccentric crank linkage structure.

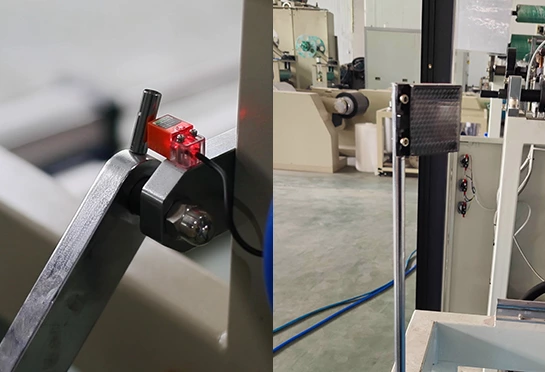

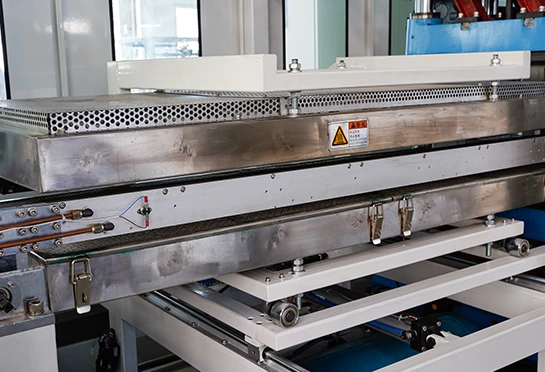

- Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.

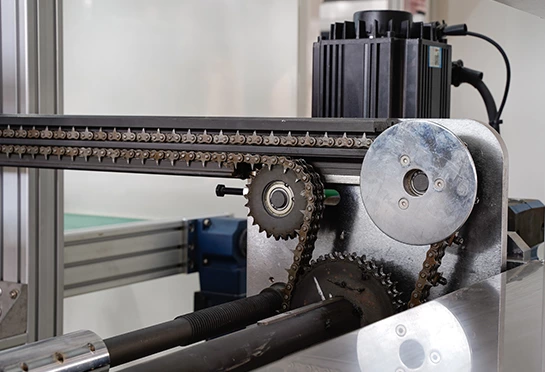

- The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.
- The machine adopts PID temperature system, it shows high precision, and temperature control tolerance ＜1℃.
- There is a rapid mould change device, which shortens the time for mould change extremely.

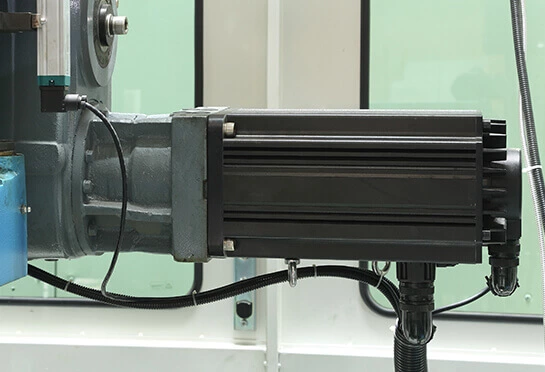

- Each servo motor has overload protection for machine’s overworking.
- Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.

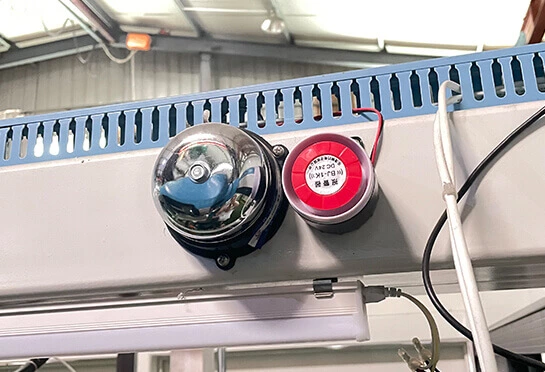

- There is an alarm function of the sliding doors.
APPLICATION

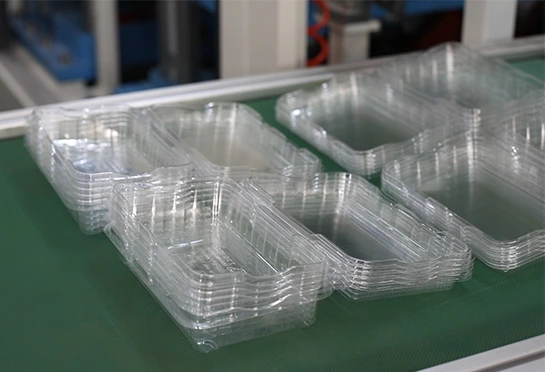

TTF series full-automatic thermoforming machine is our latest developed core product. The machine combines forming, cutting and stacking into process. widely used and suitable for most of the customer requested, it can produce plastic trays, containers, boxes, lids, etc. The machine is completely driven by servo motor. stable operation, low noise, high efficiency, high quality.
