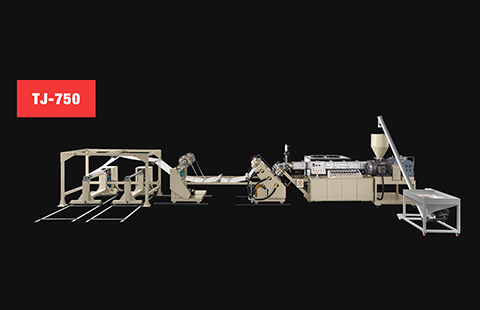

Sheet Extruder
Sheet Extruder

Hopper:Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.

Sheet Heating Part: heating plastic material;Extrude the material to the screen changer after filtering.With optimum hardness, strong corrosion resistance and long service life.

45° oblique extrusion die: Low resistance force in die head extrusion channel makes sheet thickness evenly.

The machine adopts PID temperature system, it shows high precision, and temperature control tolerance <1℃.

Three roller part pressing the raw material extruded by the die into a plate shape and cooling to form ; three rollers are oblique three rollers, simple structure, easy operation and maintenance.

Cooling frame function: cooling transition, remove excess scrap, get the required width sheet. Excessive rollers and cutters.

Edge material winding : winding the cut edge material into bundles.

Double station winding part adopts cart type switching, winding roller with gas shaft, easy disassembly, high efficiency, low labor intensity.
