MAIN TECHNICAL PARAMETER
| Model |
TQC-750 |
TQC-750S |
TQC-650B |
| Mould Size (Max.) |
750mm x 480mm |
750mm x 480mm |
650mm x 300 mm |
| Forming Depth (Max.) |
125-180mm |
180mm |
125-180mm |
| Sheet thickness |
0.3-1.8mm |
0.3-1.8mm |
0.3-1.8mm |
| Forming Speed (Max.) |
30times/min |
30times/min |
30times/min |
| Air pressure |
0.6-0.8mpa |
0.6-0.8mpa |
0.6-0.8mpa |
| Air consumption |
3.0 m³/min |
3.0 m³/min |
2.0 m³/min |
| Water consumption |
0.7 m³/h |
0.7 m³/h |
0.5 m³/h |
| Sheet width (Max.) |
760mm |
760mm |
660mm |
| Suitable Sheet |
PP, PS, HIPS, PET, PVC, PLA etc. |
PP, PS, HIPS, PET, PVC, PLA etc. |
PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply |
AC 380V, 50Hz, Three-phase, Four-wire |
AC 380V, 50Hz, Three-phase, Four-wire |
AC 380V, 50Hz, Three-phase, Four-wire |
| Heating power |
146Kw |
146Kw |
78Kw |
| Rated power |
173Kw |
173Kw |
98Kw |
| Procedure |
Heating, forming and cutting waste recycling into one |
Heating, forming and cutting waste recycling into one |
Heating, forming and cutting waste recycling into one |
| Dimension |
L8500*W2200*H3200mm |
L9000*W2305*H3190mm |
L7000*W2000*H3100mm |
| Weight |
About 6.5T |
About 7.7T |
About 5T |

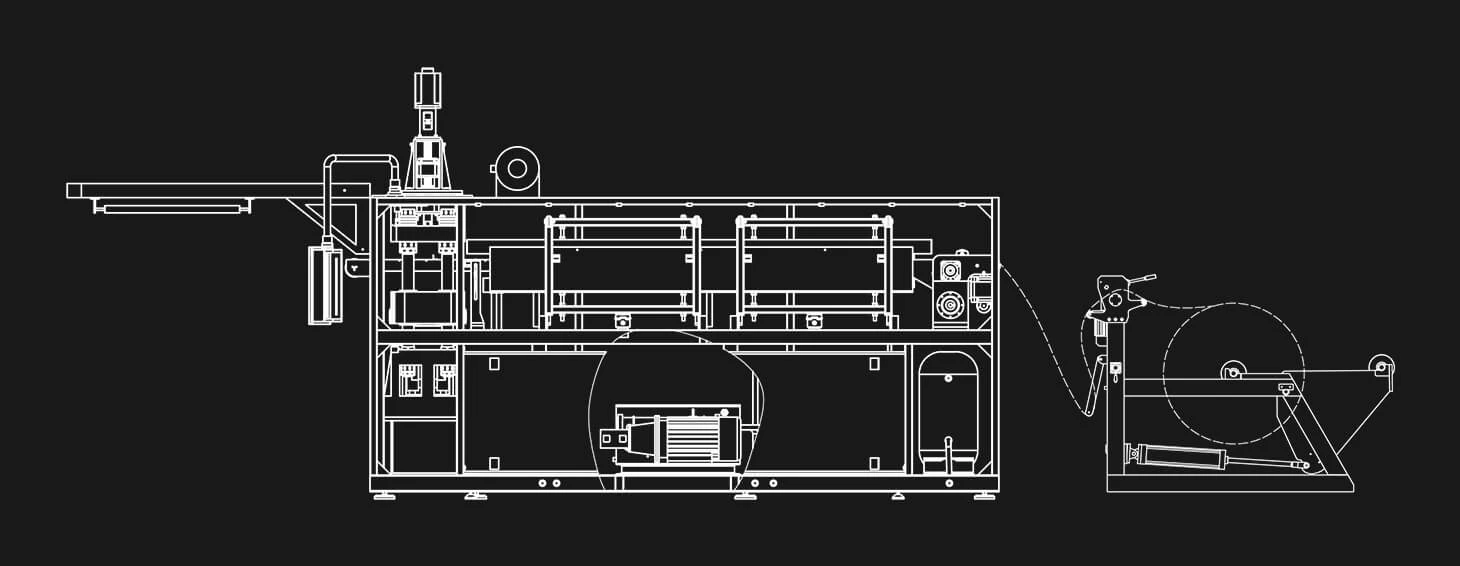

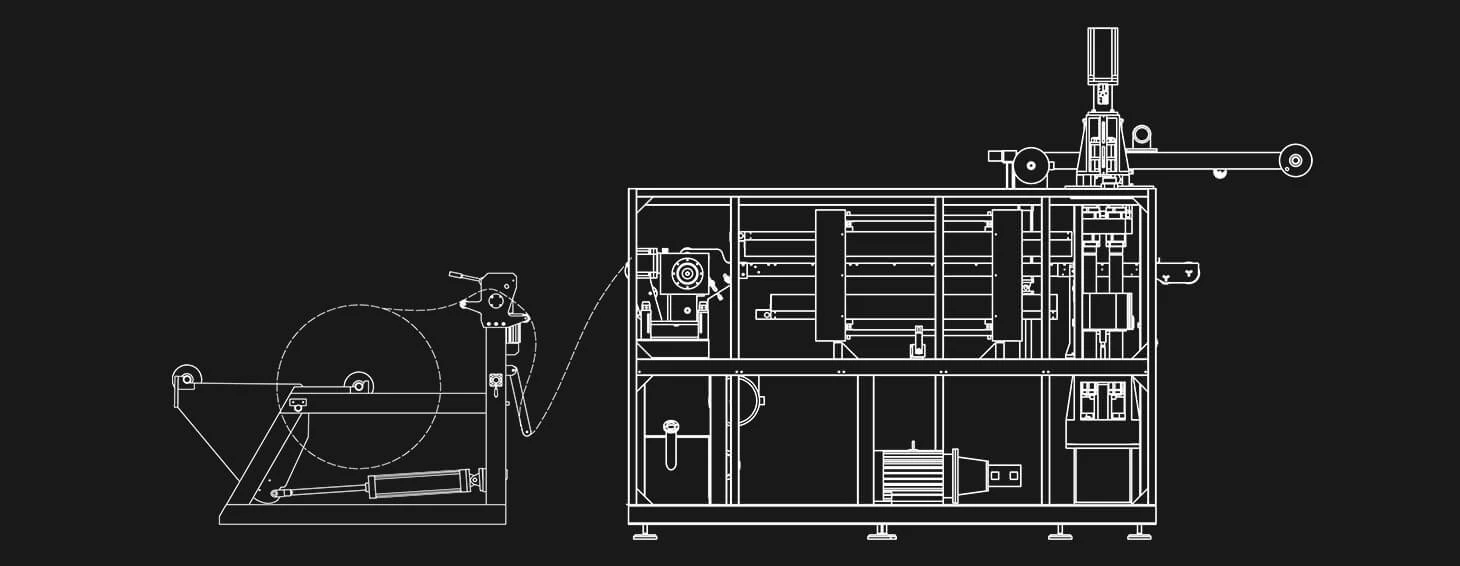

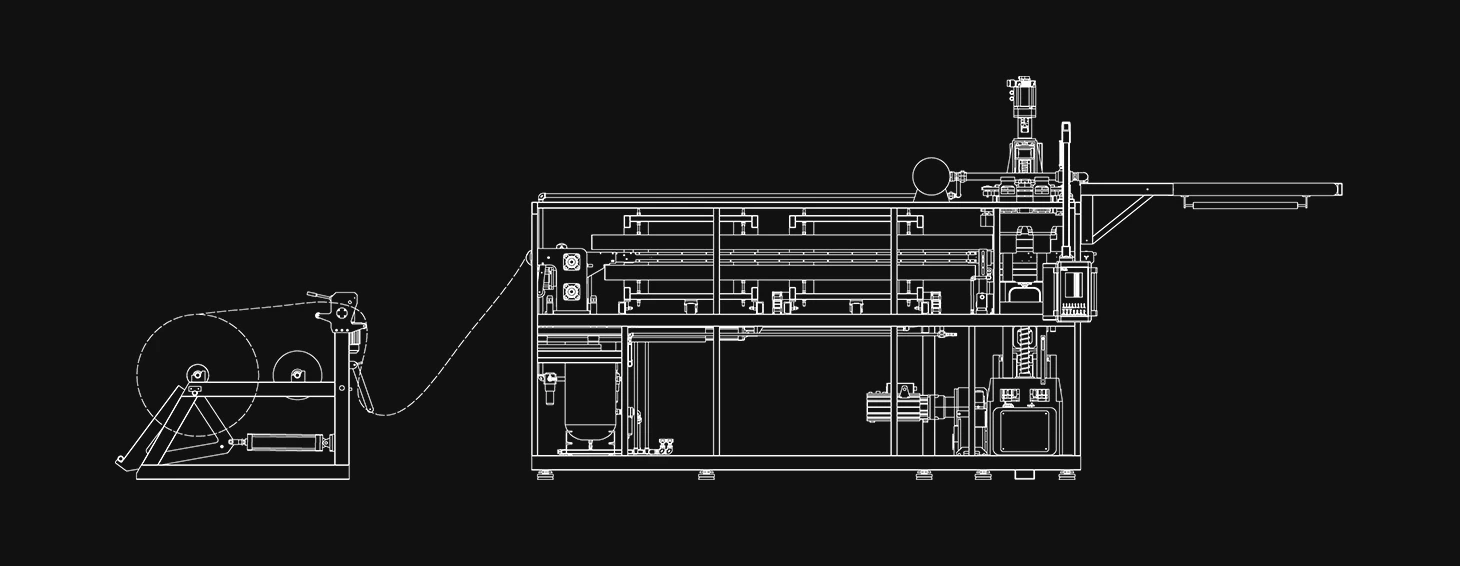

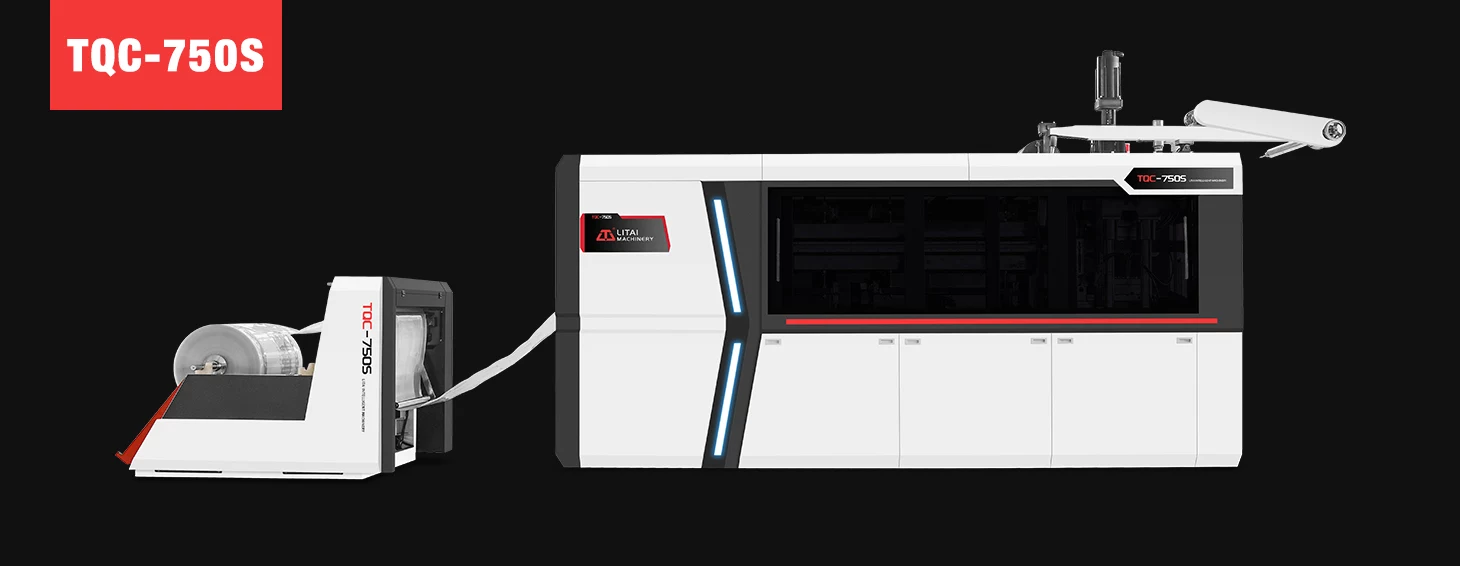

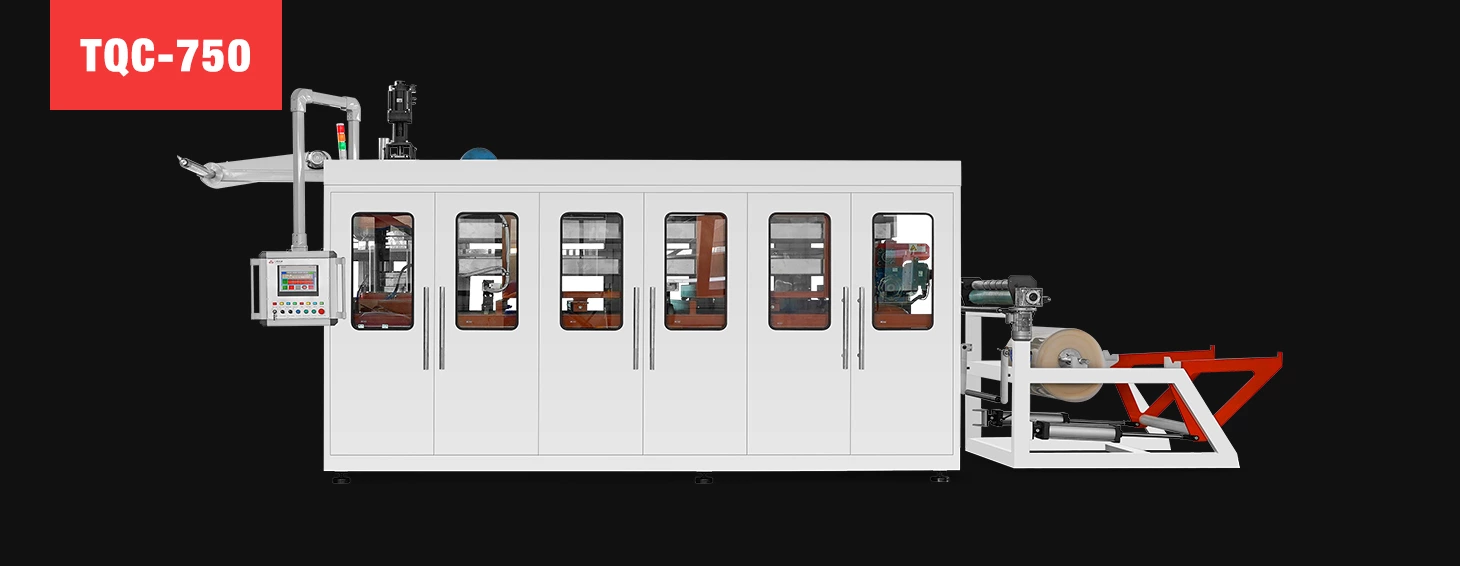

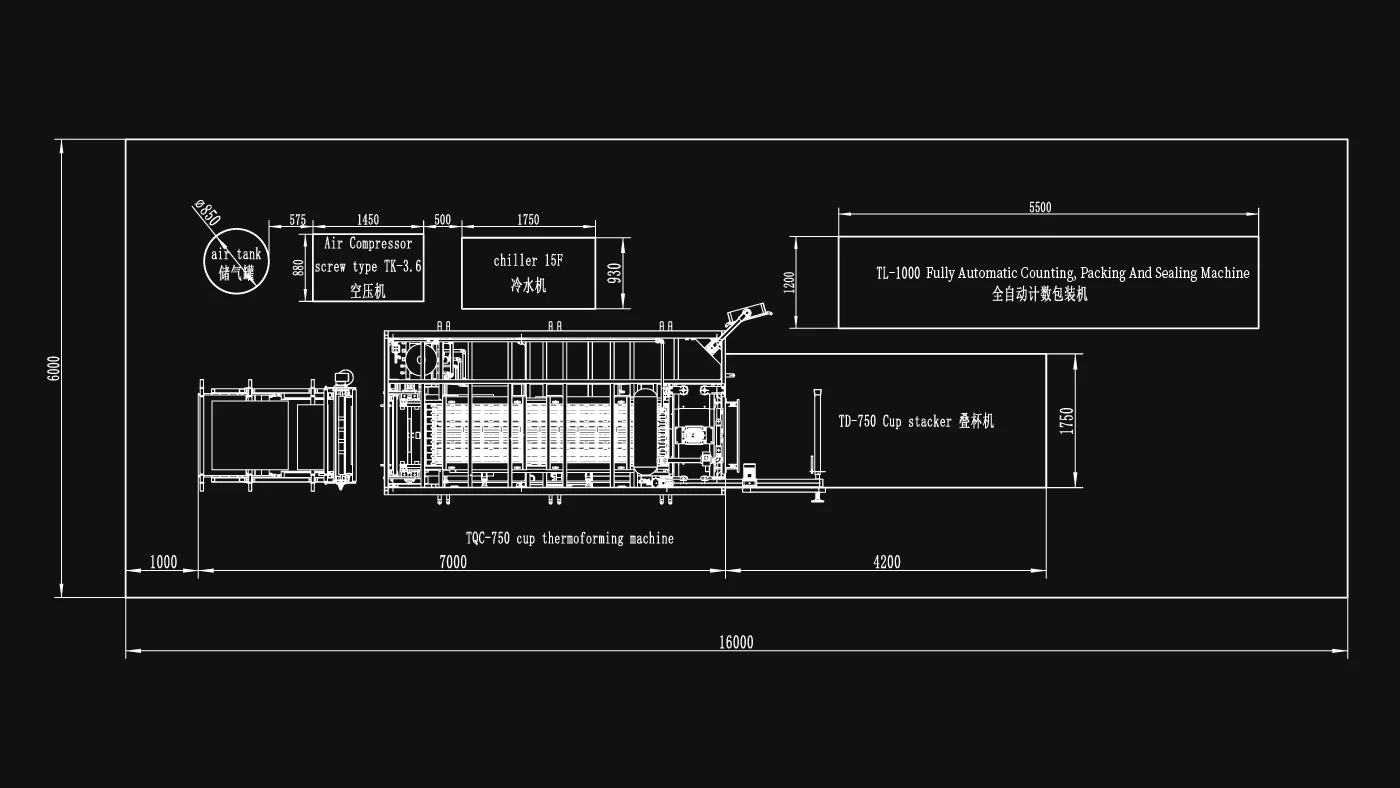

| TQC-750 |

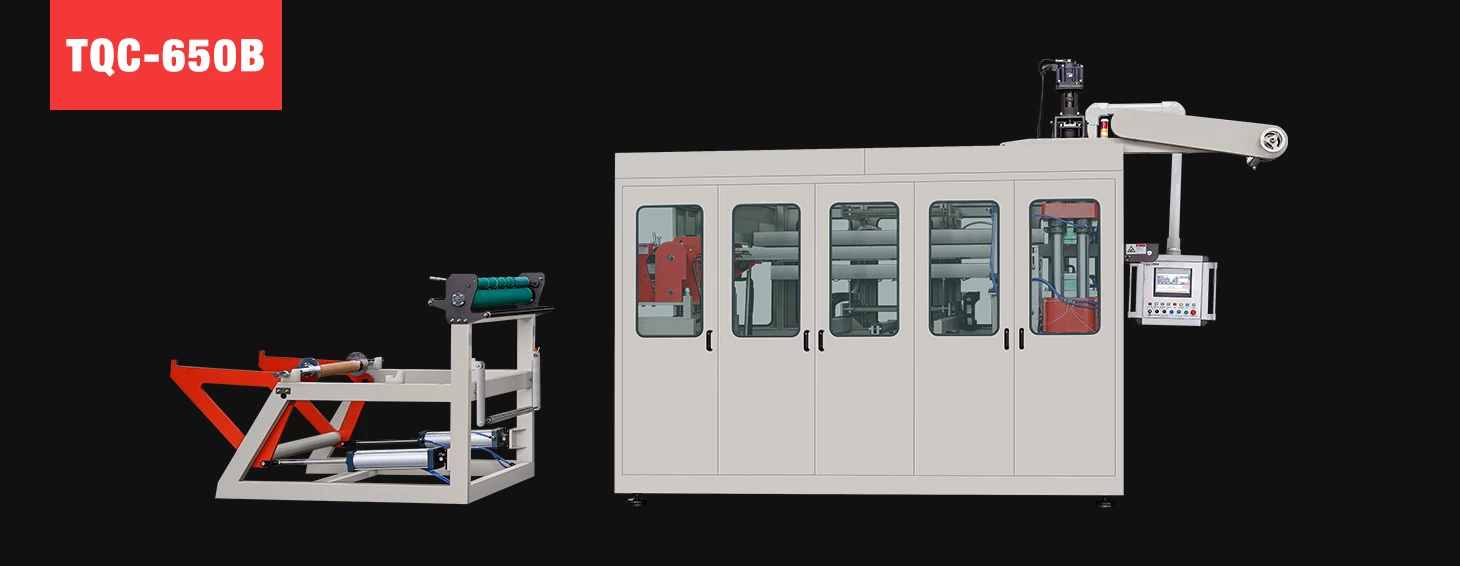

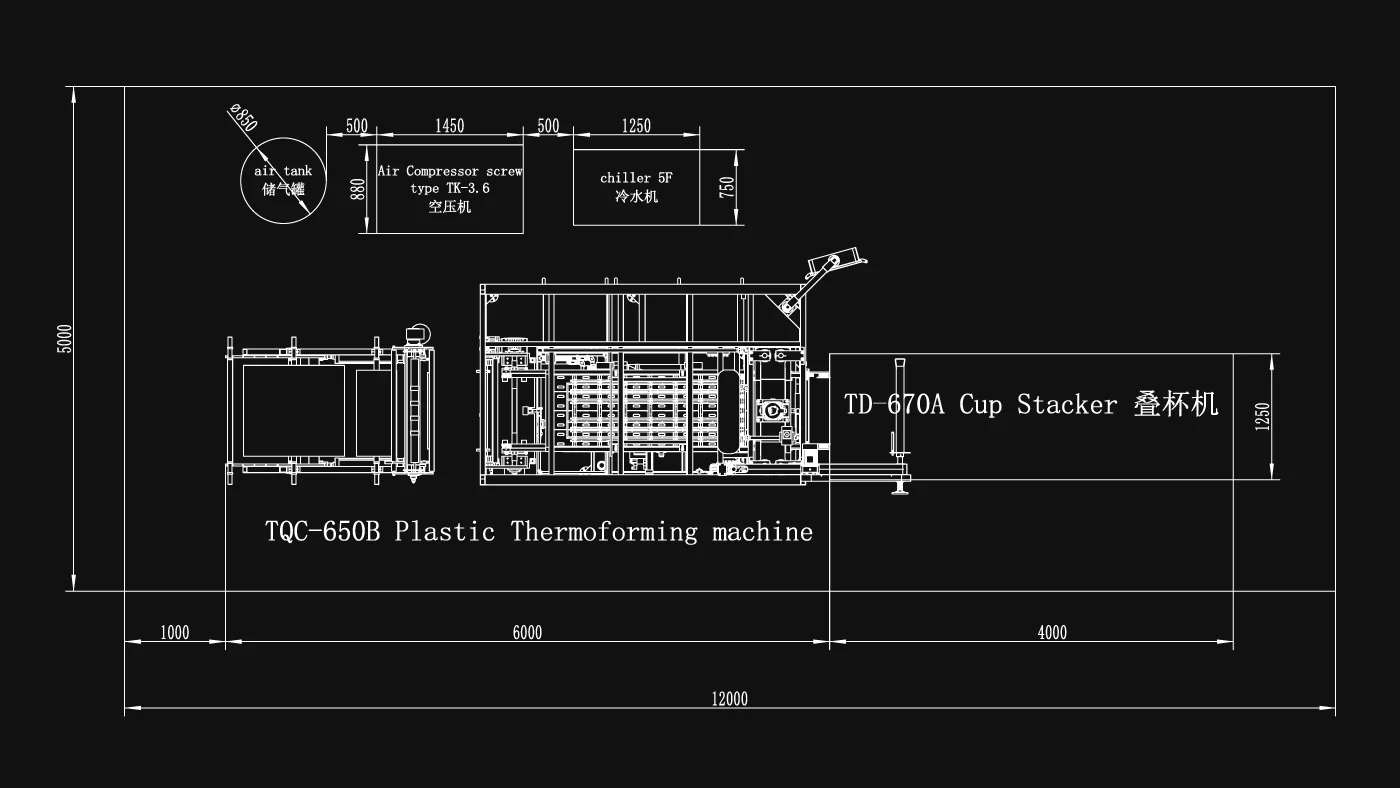

TQC-650B |
 |
 |
SUMMARY OF MACHINE
- Industrial manual interface and PLC of SIEMENS (Germany) make the high degree automation, accurate control and convenient operation. The document storage function simplifies the operational processes.

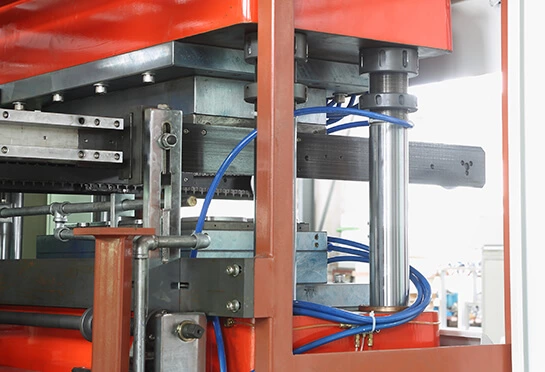

- Working stations is driven by stable four guiding-pillars (GCr15 steel, outside is hard chrome plated) structure. Wear resistant, and extend equipment life.

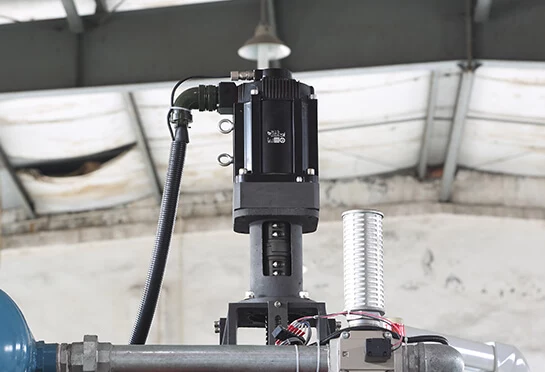

- Stretching servomotor of YASKAWA (Japan) controls the speed of the upper and lower die, this can maintain the uniform strength to ensure that the bottom thickness of each cup is uniformly. And the ser

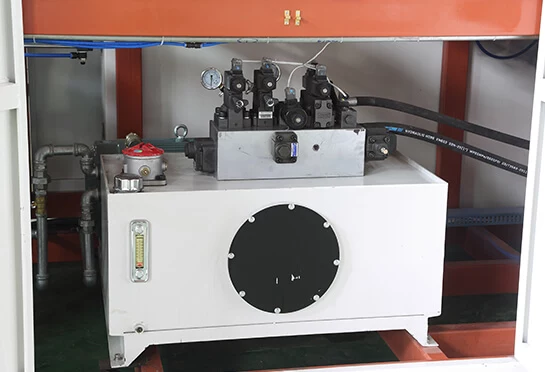

- Hydraulic driven system can provide adequately movement speed and strongly punching power.
- The whole part is driven by hydraulic system, which is reliable and steady. Using proximity switch of ROCKWELL (USA) leads to excellent mould positioning precision.

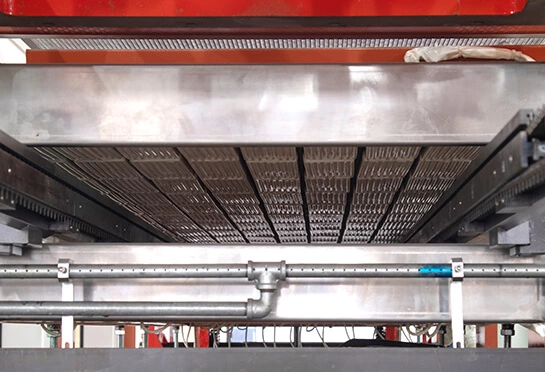

- The heater added vacuum insulation cotton, which shows quick response rate, short processing time, and save energy.

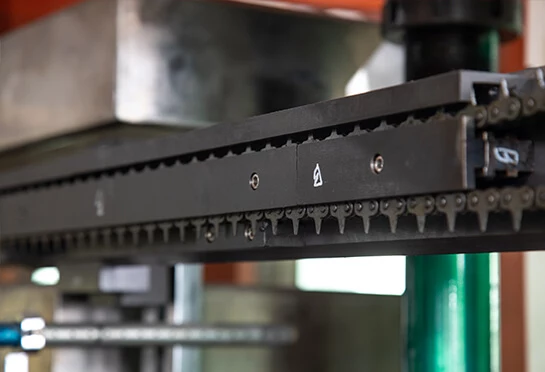

- Sharp chain uses 65#Mn, which has higher strength, better heat resistance and elasticity than 45# steel.

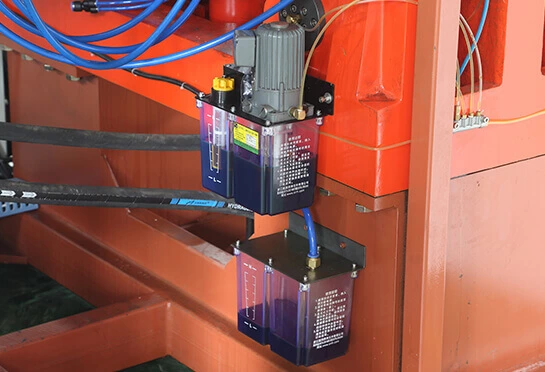

- The electric lubricating oil pump can automatically inject lubricating oil regularly and quantitatively through the control of computer under the condition of unmanned control, which can make the rota

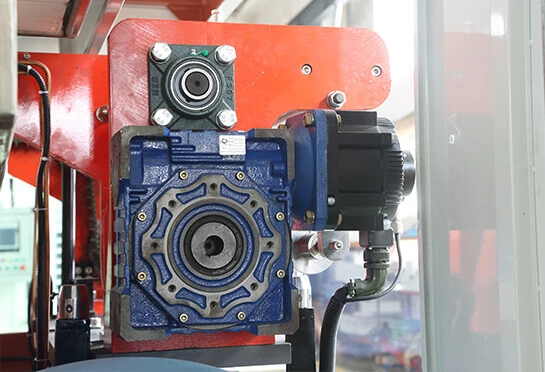

- Sheet feeding servo motor adopt YASKAWA brand, made in Japan, the rated power is 3Kw, ensure stable operation in the process of feeding.

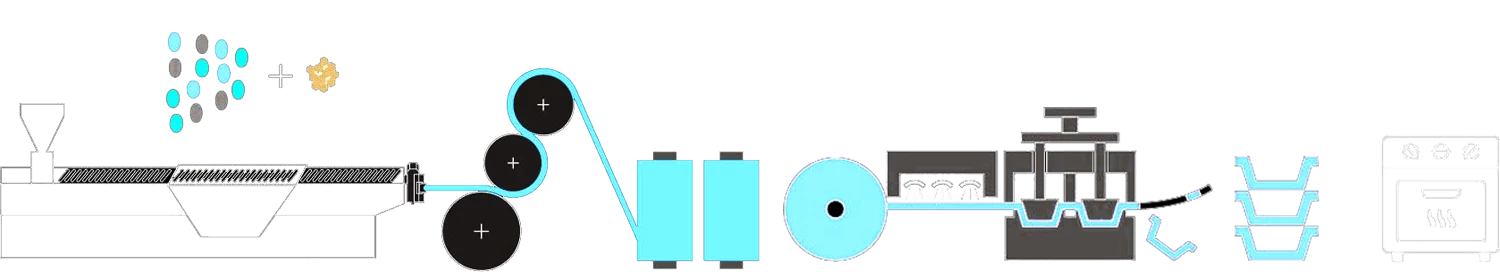

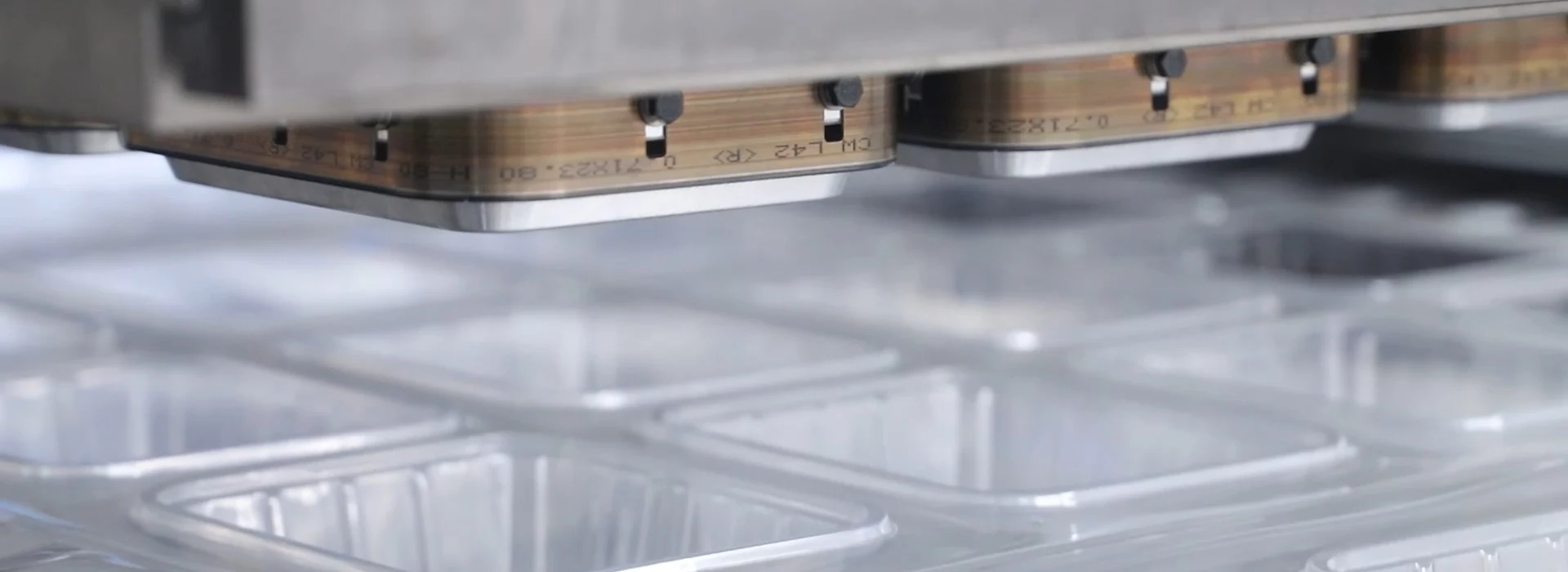

APPLICATION
Plastic cup thermoforming machine is our lasted developed product, Sheet feeding and stretching part are driven by servo motor. Machine produces disposable products, such as plastic cup, bowl, lid, and box through the workflow of sheet feeding, sheet heating, forming, cutting and blowing, widely used and suitable for most of the customer requested. PLC for program, manual interface for operation, stable, low noise, and high efficiency
