Three-station plastic thermoforming machine 700A product introduction
1. Product Overview
TTF-700A series fully automatic plastic thermoforming integrates feeding, heating, forming, trimming, and stacking waste recycling processes. The equipment has a maximum molding area of 700mm x 550 mm, a maximum molding depth of 120mm, and a maximum molding speed of 30 times/minute. This equipment is driven by a full servo motor, with stable operation, low noise and high efficiency. It is widely used in the production of plastic trays, plastic boxes, plastic lids, take-out boxes, egg trays and other packaging products. The 700A produces plastic products in various shapes by heating plastic sheets and shaping them in molds. Compared with traditional single-station or double-station thermoforming machines, the three-station design greatly improves production efficiency and product quality.
2. Product features
Efficient production

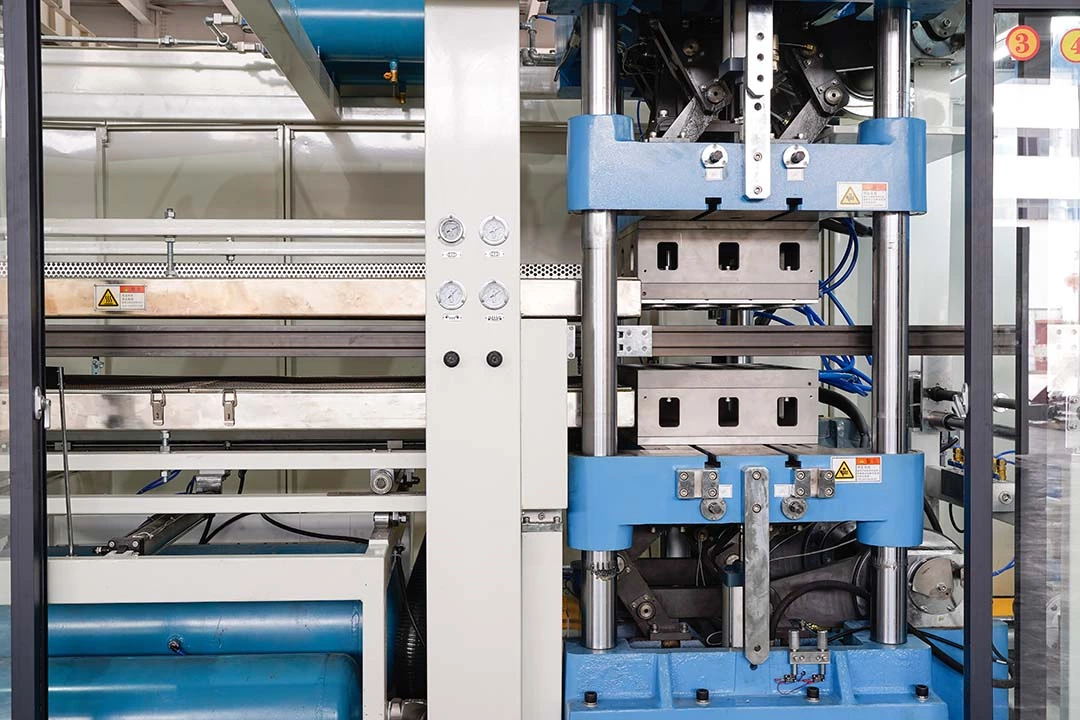

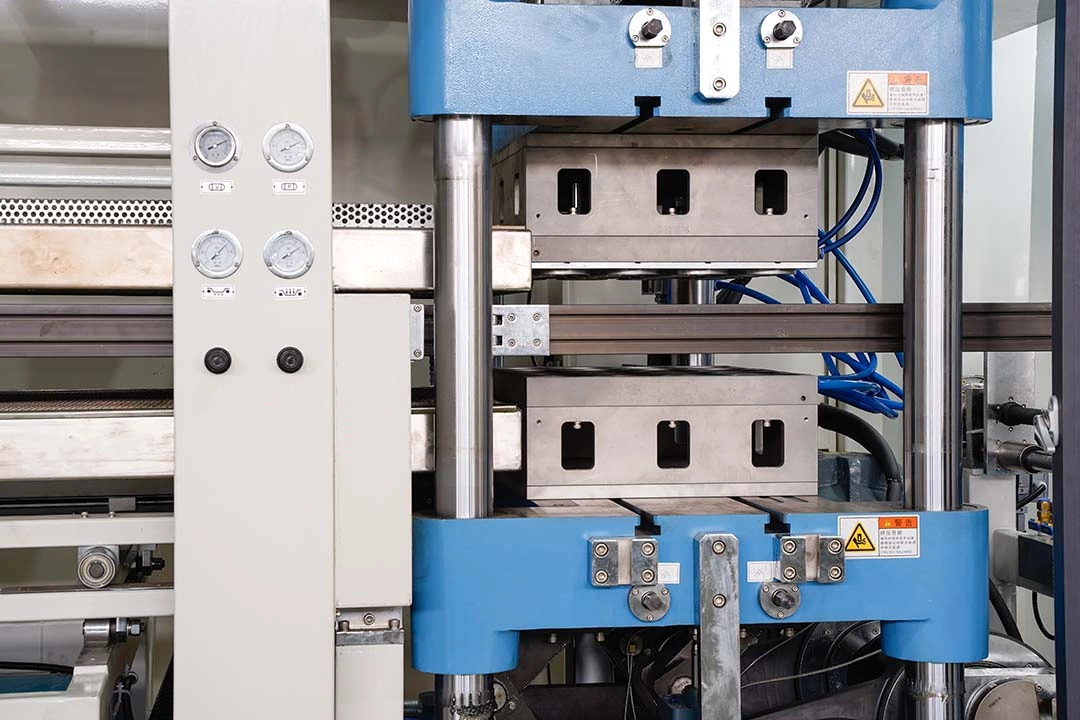

The three-station design includes three continuous operating stations for forming, cutting and stacking, which significantly shortens the production cycle of each product and increases production capacity.
It has a high degree of automation and can achieve 24-hour uninterrupted production, which is suitable for mass production needs.
Precise control

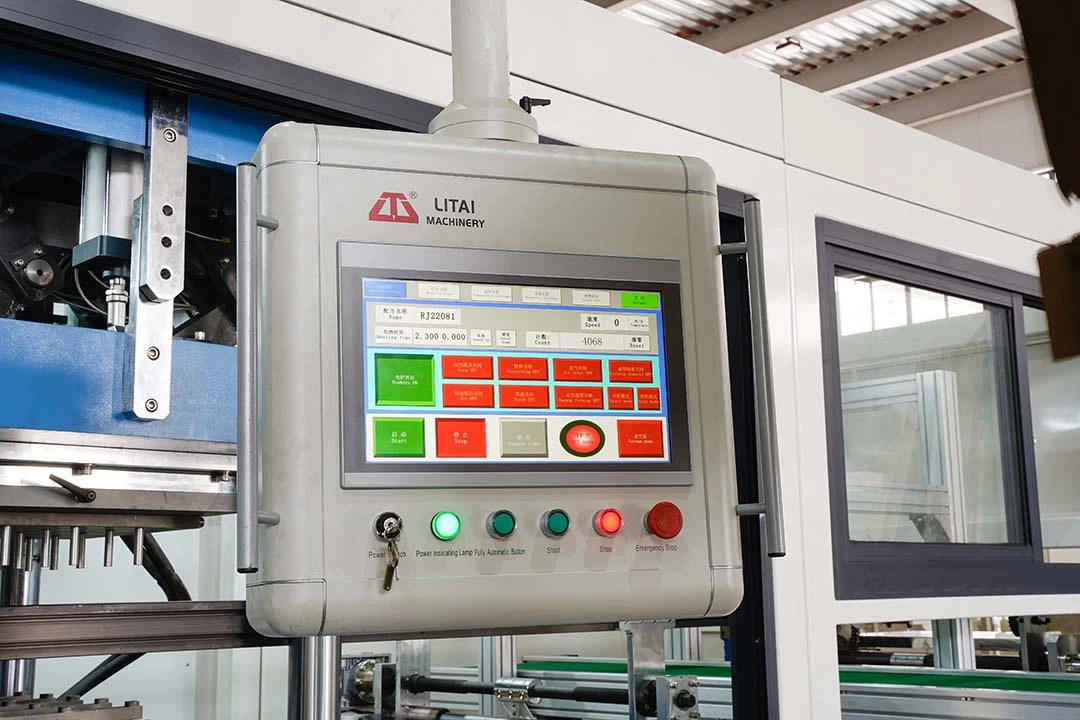

The industrial manual interface (Delta) has a storage function. The operation is simple and all parameters can be stored to facilitate next operation.
The precise temperature control system ensures uniform heating and avoids product quality problems caused by overheating or underheating.
Multifunctional mold adaptation

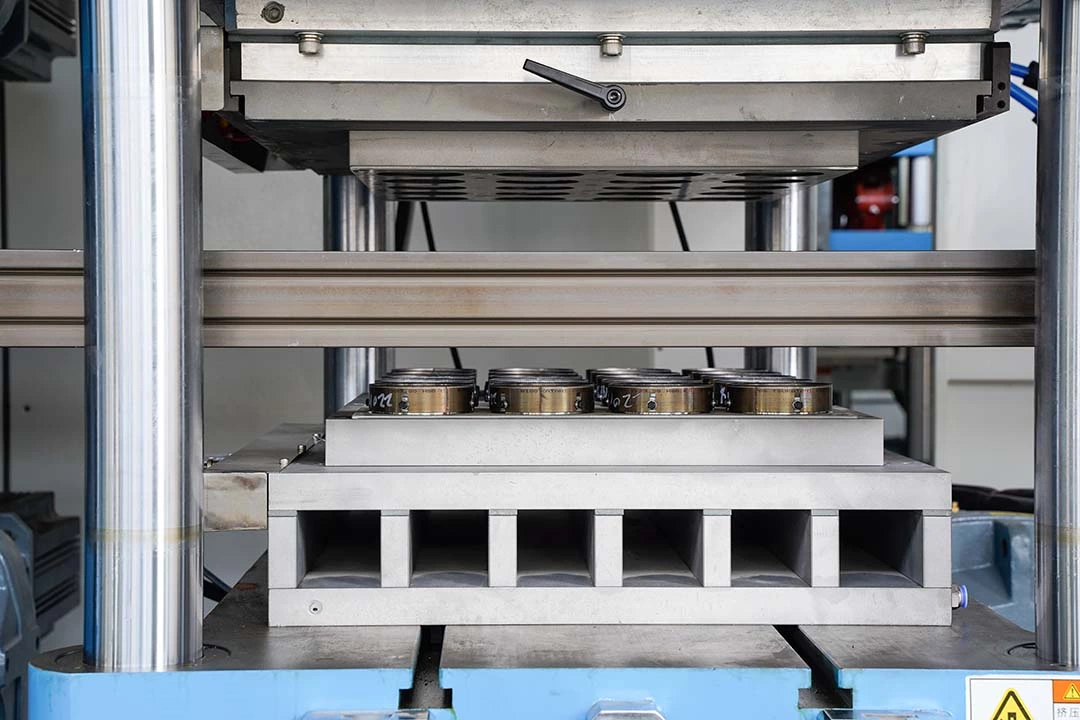

Supports the rapid replacement of multiple molds to adapt to the production needs of different products.
The mold design is flexible and can be customized according to customer requirements to meet the molding needs of various complex shapes.
Energy saving and environmental protection
Equipped with a high-efficiency heating system to reduce energy consumption.

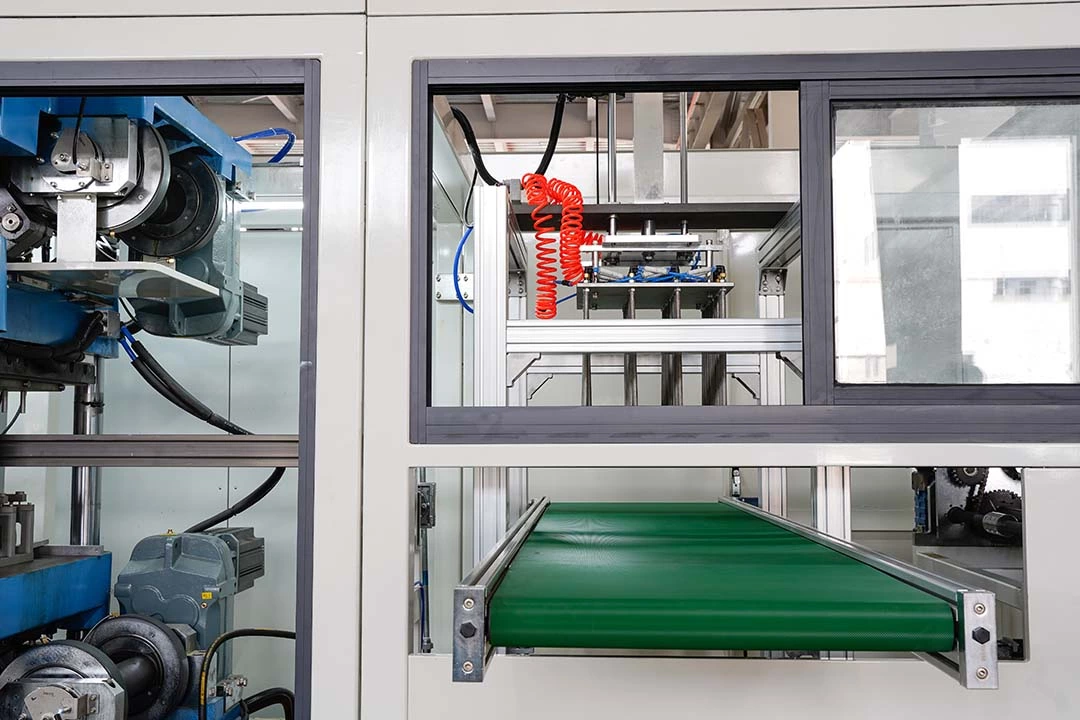

Automatic waste recycling system reduces material waste and meets environmental protection requirements.
3.Technical parameters
| MAIN TECHNICAL PARAMETER | |
| Model | TTF-700A |
| Forming Area | 700mm x 550 mm |
| Forming Depth (Max.) | 120mm |
| Sheet thickness | 0.2-1.6mm |
| Forming Speed (Max.) | 30times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.4 m³/min |
| Water consumption | 0.7 m³/h |
| Sheet width (Max.) | 730mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Used power | 95Kw |
| Rated power | 188Kw |
| Heating power | 118Kw |
| Procedure | Forming-cutting-stacking |
| Dimension | L11500*W4500*H2800mm |
| Weight | About 19.0T |
4.Application fields

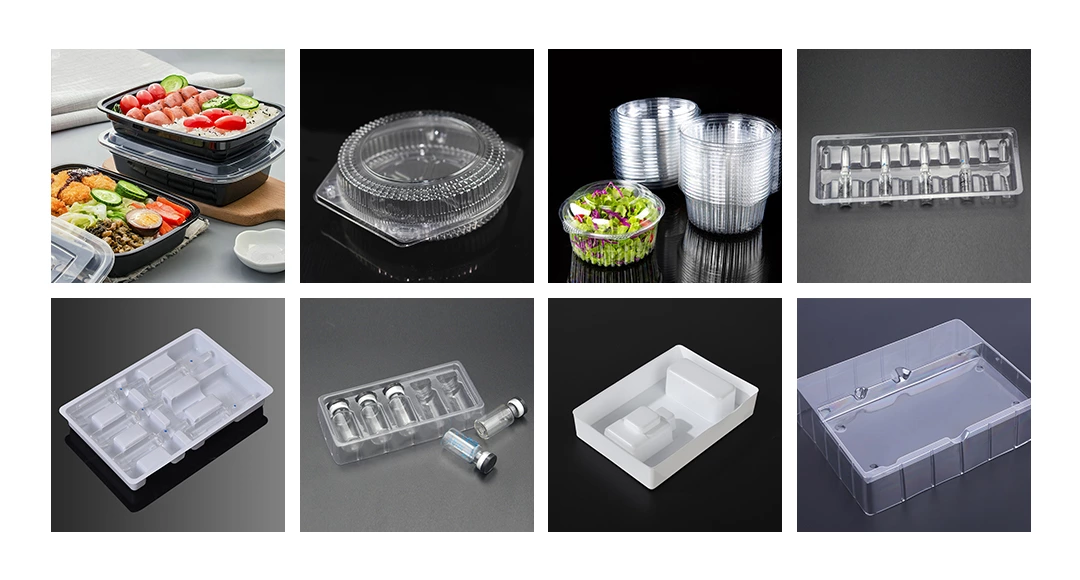

Food packaging: production of various food trays, lunch boxes, etc.
Medical devices: Manufacturing of packaging for medical supplies, such as syringe trays, medicine bottle holders, etc.
Electronic products: Make protective packaging for electronic components to ensure safe transportation.
5.Customer support and service
Technical training: Provide comprehensive operational training, including online and offline training, to ensure that customers can use the equipment proficiently.
After-sales service: Professional after-sales team provides fast maintenance and technical support.
Spare parts supply: Various wearing parts and key components are always available to ensure uninterrupted production.
6. Summary
The three-station plastic thermoforming machine 700A has become an indispensable and important equipment in the plastic products industry with its efficient production capacity, precise control system and wide range of application fields. Whether it is mass production or complex product molding, this equipment can provide excellent performance and reliability, making it an ideal choice for companies to improve production efficiency and product quality.
Customers from all walks of life are welcome to visit the factory, discuss cooperation, and jointly promote the development of the plastic molding industry.
