Plastic coffee cup thermoforming machine

Date: | Read: 89

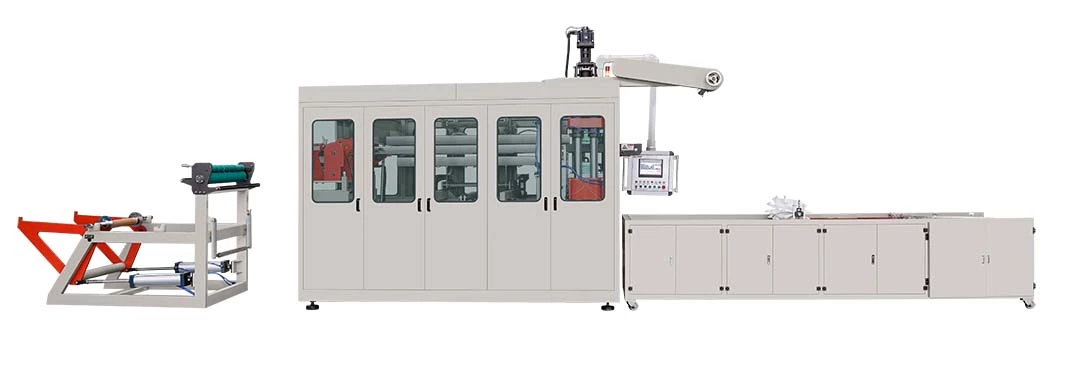

Plastic coffee cup thermoforming machine

The plastic coffee cup thermoforming machine is a highly efficient and versatile equipment specially designed for mass production of plastic coffee cups and other plastic containers. It uses a thermoforming process to heat the plastic sheet to a suitable temperature to produce a deformed soft film, and then uses a mold to process it into the desired shape. This equipment is widely used in the food and beverage, catering and fast food industries, providing enterprises with efficient, stable and environmentally friendly solutions.

Product Features

Efficient production: The thermoforming machine adopts advanced heating and forming technology, which can quickly bond plastic sheets into finished coffee cups. The high production speed can greatly improve production efficiency and meet the needs of large-scale production.

Automated operation: The equipment is equipped with a control system, and the operation is not required, reducing human intervention. The customized PLC controller and touch screen interface make the operation more intuitive and reduce the number of people to operate the control.

Precise molding: The precise mold design and control system are adopted to ensure that each finished product has the same size and uniform thickness, meeting strict quality standards.

Energy saving and environmental protection: Equipped with an efficient heating system, it can maintain a stable heating temperature while reducing the temperature, effectively reducing energy consumption. In addition, the equipment also supports the use of environmentally friendly and degradable materials, which is in line with the environmental protection trend.

Versatility: The thermoforming machine is not limited to the production of coffee cups, but can also produce plastic containers of different shapes and sizes, such as plastic bowls, cups, etc. by replacing the mold, with multiple flexibility and scalability.

Easy maintenance: The equipment design takes into account easy maintenance, and the modular structure allows the parts to be checked and replaced with each other. High-quality parts and stable performance ensure the long-term operation of the equipment.



Applicable materials

The plastic coffee cup thermoforming machine is suitable for a variety of plastic materials, including PET, PS, PP, PLA, PVC, HIPS, etc. In particular, the use of degradable materials such as PLA meets the current market demand for environmentally friendly products.



Application areas

The equipment is widely evaluated by various food and beverage packaging manufacturers, fast food chains, catering service providers, etc., to provide the market with high-quality, environmentally friendly disposable plastic cup products.



Technical specifications

TECHNICAL PARAMETER
Model TQC-650B
Max. Forming Area   650*300mm
Max. Forming Depth   125-180mm
Sheet Thickness   0.3-1.8mm
Sheet Width   660mm
Max. Forming Speed   30 times/min
Air Pressure   0.6-0.8mpa
Air Consumption   2.0m³/min
Water Consumption   0.5m³/h
Rated Power 98Kw
Used Power 69Kw
 Power Supply   AC 380V,50Hz, Three-phase, Four-wire
Dimension L7000*W2000*H3100mm
Weight About 5T



We provide comprehensive services, including equipment installation and commissioning, technical training, regular maintenance and parts replacement services. Our technical team will always be ready to provide technical support to customers to ensure the stable operation of the equipment and the continuous improvement of production efficiency.



Plastic coffee cup thermoforming machine is an ideal choice for the modern packaging industry. It is efficient, stable, energy-saving and environmentally friendly, which helps enterprises improve productivity and meet the market demand for bulk plastic products.
